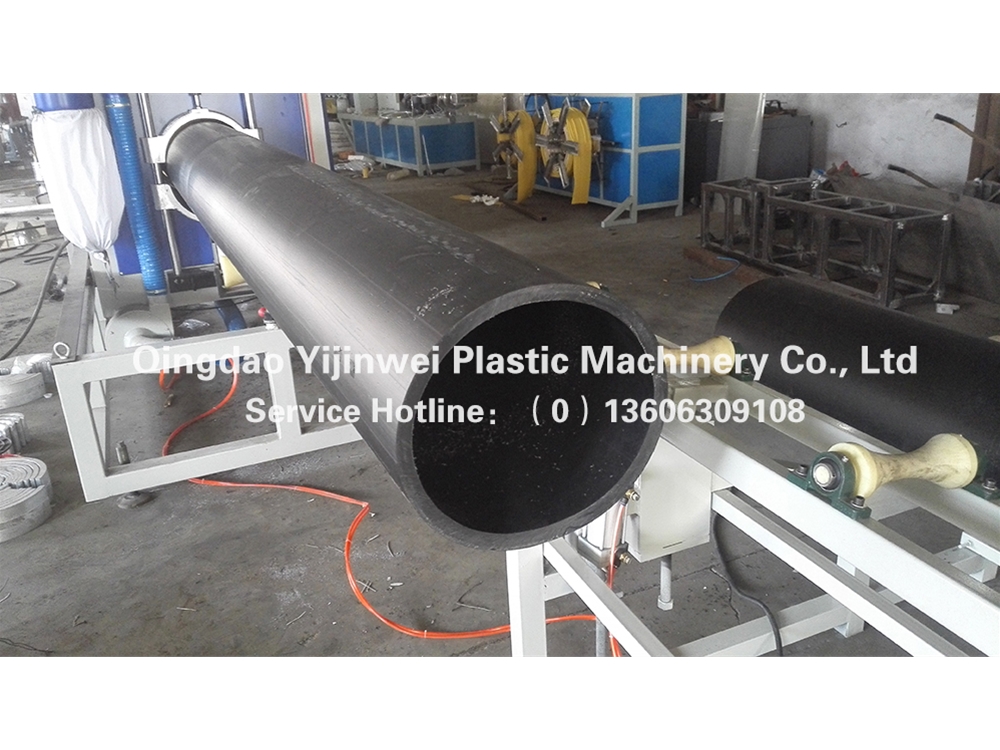

HDPE gas supply pipe production line
Description:
PE Water and Gas Plastic Pipe Production Line/pe plastic pipe production line/plastic pipe making machine is mainly designed specially for polylefin, polythylene pipe processing and suitable for PE PP PB PPR pipe high-speed extrusion.It adopts rugged compact reducer,shielding type separation screw,slot barrel,basket type extrusion die etc,which ensure the users can make high quality plastic pipe.
Process flow:
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → discharging rack
Main Technical Parameter:
|
Model number |
Pipe diameter (mm) |
Max output (kg/hr) |
Production rate (m/min) |
Extruder model |
Installation power |
Layout dimension |
|
PE16/63 |
16-63 |
150 |
1-15 |
SJ65/30 |
85kw |
35x3x2m |
|
PE20/110 |
20-110 |
200 |
1.2-12 |
SJ65/33 |
110kw |
38x3.1x2.2m |
|
PE50/160 |
50-160 |
350 |
0.6-8 |
SJ75/33 |
125kw |
38x3.1x2.2m |
|
PE75/250 |
75-250 |
350 |
0.5-4 |
SJ75/33 |
180kw |
40x3.2x2.4m |
|
Model number |
Pipe diameter (mm) |
Max output (kg/hr) |
Production rate (m/min) |
Extruder model |
Installation power |
Layout dimension |
|
PE110/315 |
110-315 |
350 |
0.4-3.7 |
SJ75/33 |
260kw |
40x3.2x2.4m |
|
PE200/450 |
200-450 |
450 |
0.3-3 |
SJ90/33 |
325kw |
52x3.3x2.6m |
|
PE315/630 |
315-630 |
850 |
0.2-2 |
SJ120/33 |
480kw |
60x3.5x2.8m |
|
PE400/800 |
400-800 |
850 |
0.1-1 |
SJ120/33 |
600kw |
68x3.6x3m |
